Slotted acoustic panels

Slotted timber acoustic panels
perforated acoustic suspended ceiling panels

Slotted acoustic wall panels

Slotted timber acoustic panels are typically installed on to battens with our secret fixing system and even shadow gaps.


Suspended ceilings

For ceilings we a suspended ceiling tile version, which is easily removable and acts to conceal a standard T grid system. Alternatively an MF system can be used and similar mounting to wall panels is achieved.


Individual ceiling 'clouds'

Individual suspended panels can be installed using our efficient aluminium demountable system and steel wire. Black up-stands to the rear hide the fixing system.
These systems can be particularly useful for certain aesthetic requirements, when less than full ceiling coverage is needed, and when the thermal mass benefits of the exposed soffit are to be preserved.

Pattern examples below

Slotted acoustic panels. An attractive sound control solution.

Slotted acoustic panels give a durable, attractive sound absorbing surface which is suitable for many spaces and for either walls or ceilings.

you can select from many perforation patterns or design your own and the finish options are almost endless.



Downloads

Timber acoustic
solutions overview


Contact us

info@stil-acoustics.co.uk

+44(0)161 236 2049



Acoustic performance

We offer many perforation patterns, each of which gives different absorption properties. The cavity depth to the rear of the panels and absorbing material are also key to this. We are here to help.

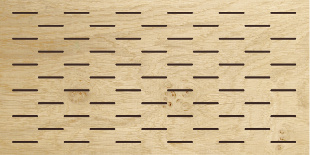

Acoustic panel1

8/32L

8mm slots at 32mm centres
Open area 15.2%
Standard panel sizes 1200x600mm or 600x600mm.

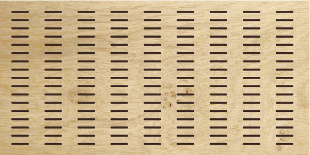

Acoustic panel6

8/20L

8mm slots at 20mm centres.
Open area 27.3%
Standard panel sizes 1200x600mm or 600x600mm.

Acoustic panel7

3/30W

8mm slots at 30mm centres.
Open area 20.4%
Standard panel sizes 1200x600mm or 600x600mm.
